DRONE MOTOR LN13725-60KV

The motor model LN13725D24-001 (60KV) has a rated voltage of 60VDC and rotates counterclockwise (CCW) when viewed from the shaft extension end. Its no-load performance is 3600±10% RPM with a maximum current of 1.5A, while the load performance is 2610±10% RPM, 148.9A±10% current, and 29.25N.m torque. The motor vibration is ≤7m/s, the backlash is between 0.01mm and 0.2mm, and the noise at 1m distance is ≤60dB when the ambient noise is ≤45dB. It has an insulation class of CLASS F. During operation, there are no abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play, and its appearance is clean without rust.

• Rated Voltage: 60VDC;
• Motor Rotation Direction: CCW rotation (from the shaft extension end);
• Motor Withstand Voltage Test: ADC 600V/3mA/1Sec;
• No-load Performance: 3600±10% RPM / 1.5A Max Load Performance: 2610±10% RPM / 148.9A±10% / 29.25N.m
• Motor Vibration: ≤7m/s;
• Backlash: 0.01 - 0.2mm;
• Noise: ≤60dB at 1m (ambient noise ≤45dB);
• Insulation Class: CLASS F;
• No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during motor operation;
• The motor has a clean appearance and no rust.

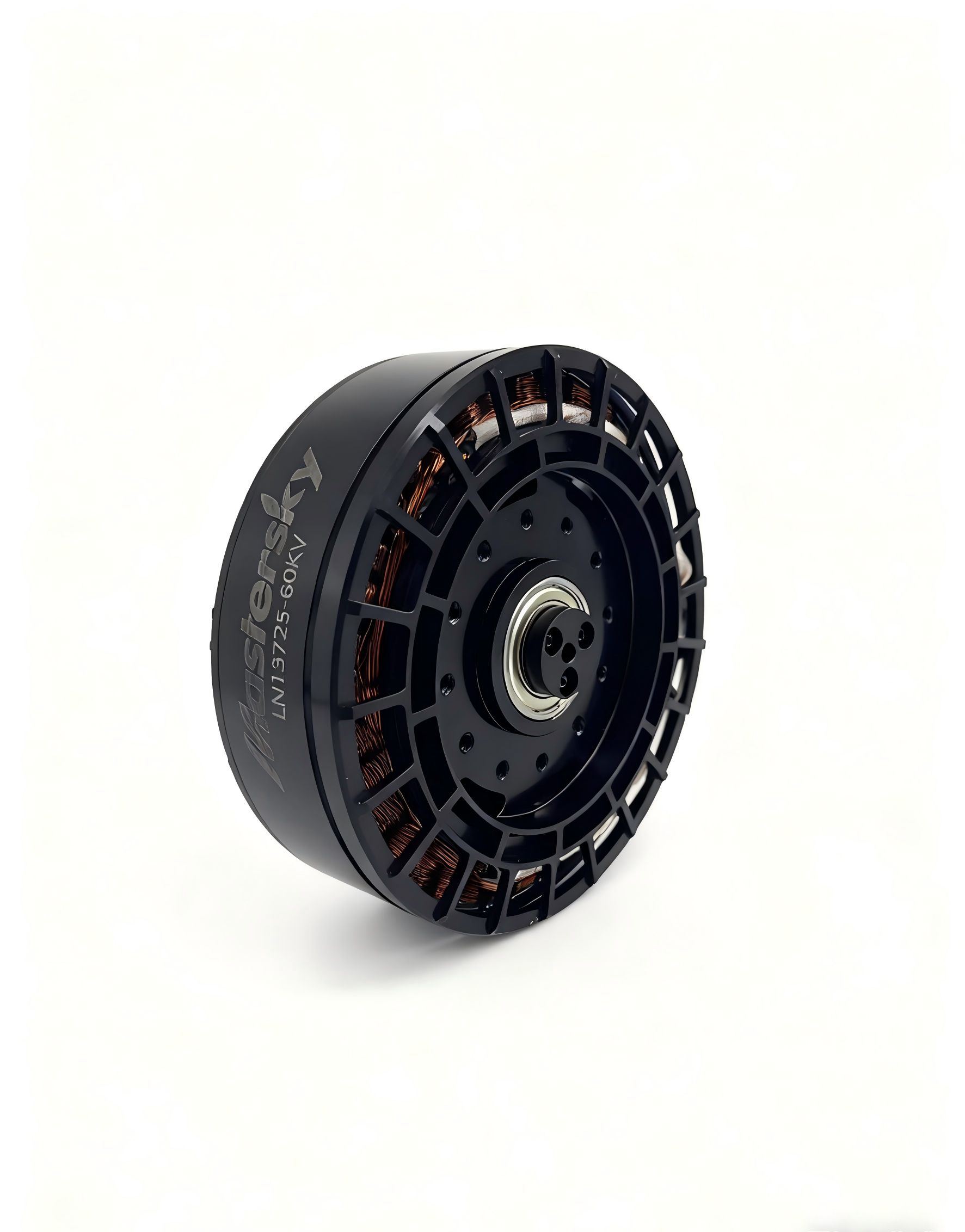

DRONE MOTOR LN13725-60KV Images
